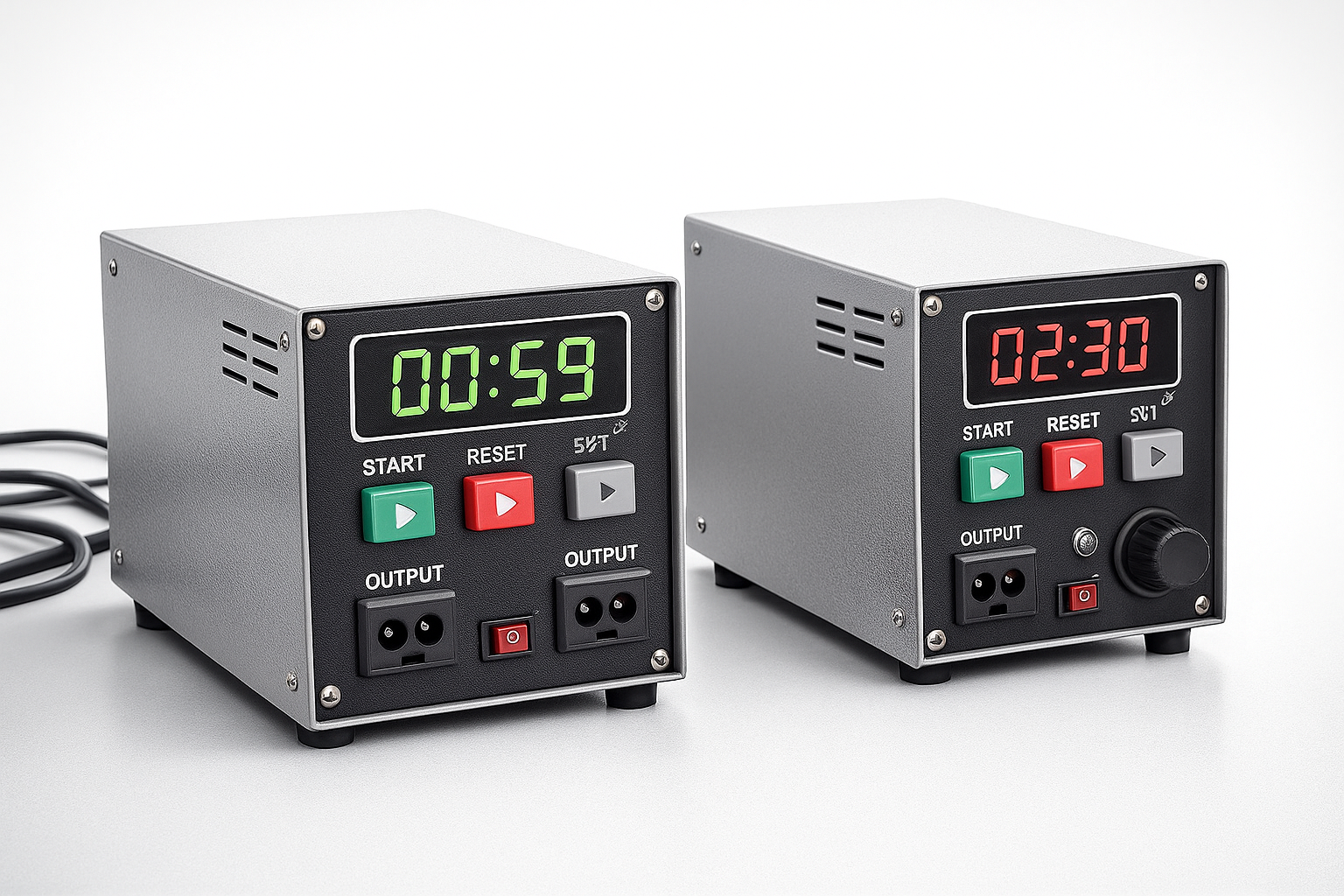

Timer & Control Units

Timer & Control Units:

Timer & Control Units are the essential electronic modules that serve as the central processing and command center for both semi-automatic and automatic Non-Destructive Testing (NDT) systems, such as Magnetic Particle Inspection (MPI) benches and Fluorescent Penetrant Inspection (FPI) lines.

They are responsible for ensuring the precise timing, sequence, and parameter control required for reproducible and compliant inspection results.

Key Functions and Components

1. Process Sequencing and Timing:

   • Dwell Time Control (PT/LPI): These units precisely regulate the duration for which the penetrant remains on the surface (Penetrant Dwell Time) and the time allowed for the developer to draw out the penetrant (Developer Dwell Time).

   • Magnetization Sequence Control (MPI): They control the exact duration and sequence of the magnetic current shot (often a quick, powerful pulse), ensuring the component is fully magnetized before the particles are applied. They also manage the timing for the subsequent demagnetization cycle.

2. Parameter Setting and Interlocks:

   • Variable Settings: They allow the operator to input and digitally set critical parameters such as:

     • Current Amperage (MPI): The precise current level for circular and longitudinal magnetization.

     • Temperature (FPI): Monitoring and controlling the temperature of the drying oven and rinse water.¹

   • Safety Interlocks: Control units integrate safety features. For example, they may prevent the magnetizing current from firing if the protective hood is not closed or if a cooling cycle is incomplete.

3. Operator Interface:

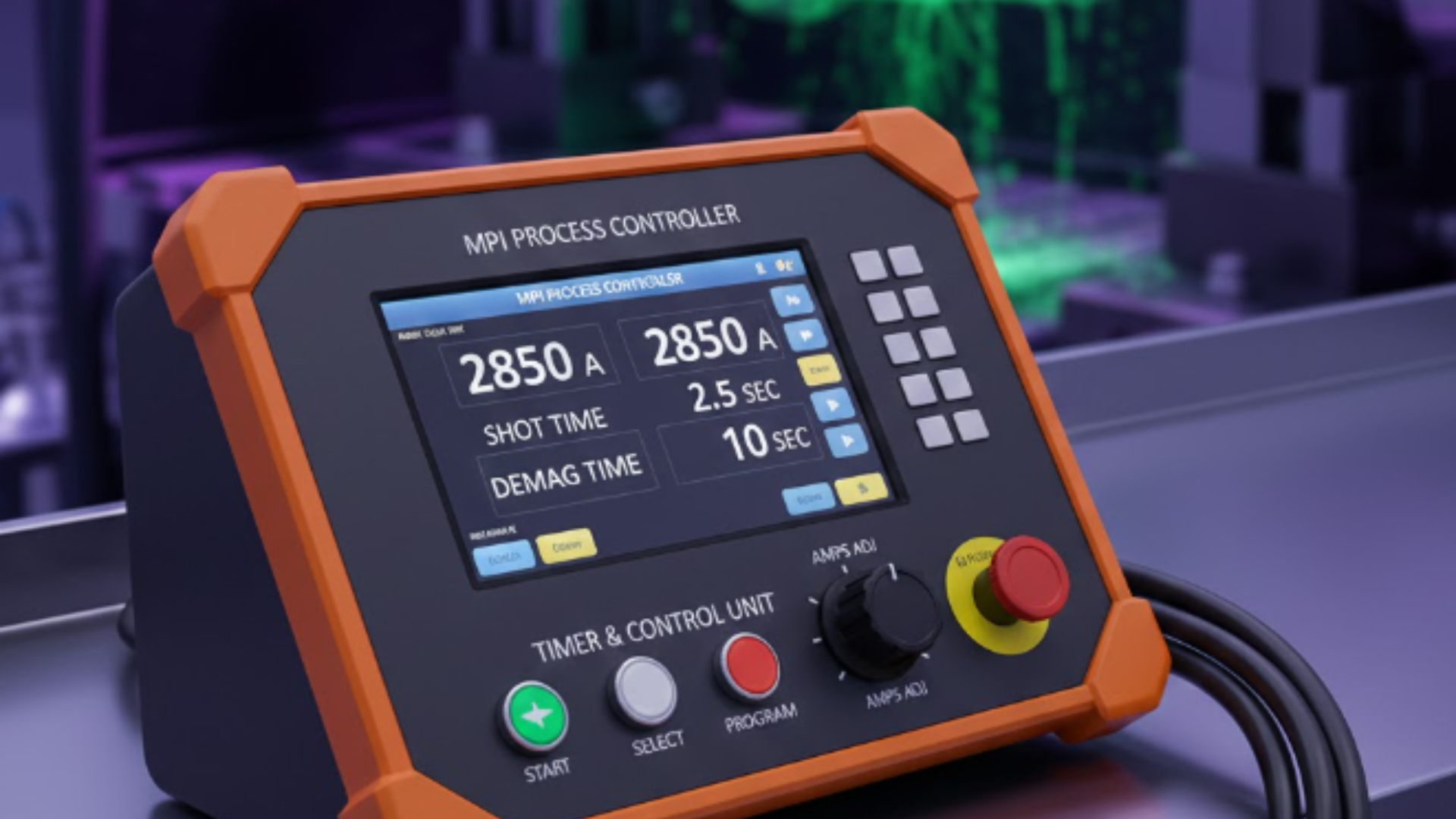

   • Modern units feature digital displays (often touchscreens) that allow the operator to select stored inspection recipes, monitor the current process step, view timer countdowns, and receive diagnostic feedback or alarms.

4. Data Logging:

   • Increasingly, control units are equipped with internal memory or connectivity ports to log critical process data (current used, shot duration, dwell times) for every component inspected. This data is essential for quality control traceability and meeting industry audit requirements.
