Portable Inspection System: NDT on the Go

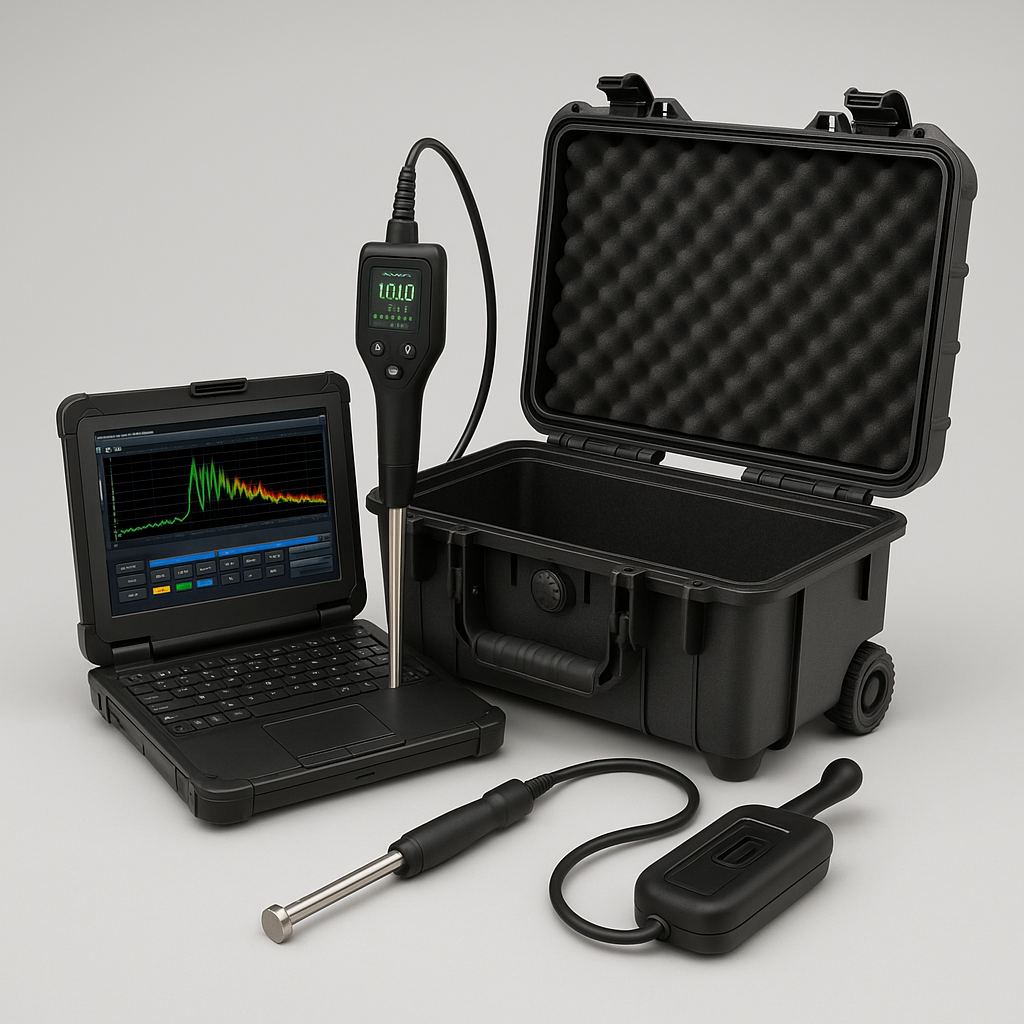

A Portable Inspection System in Non-Destructive Testing (NDT) refers to any self-contained, lightweight, and easily transportable set of equipment designed for performing inspections directly on-site, in the field, or in challenging access locations, rather than bringing the component to a dedicated inspection laboratory.

Key Characteristics

1. Compact and Lightweight: The most defining feature is its ease of transport. Components are designed to be small, rugged, and often battery-powered.

2. Self-Contained: These systems often integrate multiple functionalities or require minimal external support (e.g., a portable power source).

3. Field-Ready: Built to withstand various environmental conditions, including dust, humidity, and temperature fluctuations, commonly encountered in industrial or remote settings.

4. Rapid Deployment: Designed for quick setup and operation, minimizing downtime on the job site.

Components and Examples

Almost all NDT methods have portable variants:

• Ultrasonic Testing (UT):

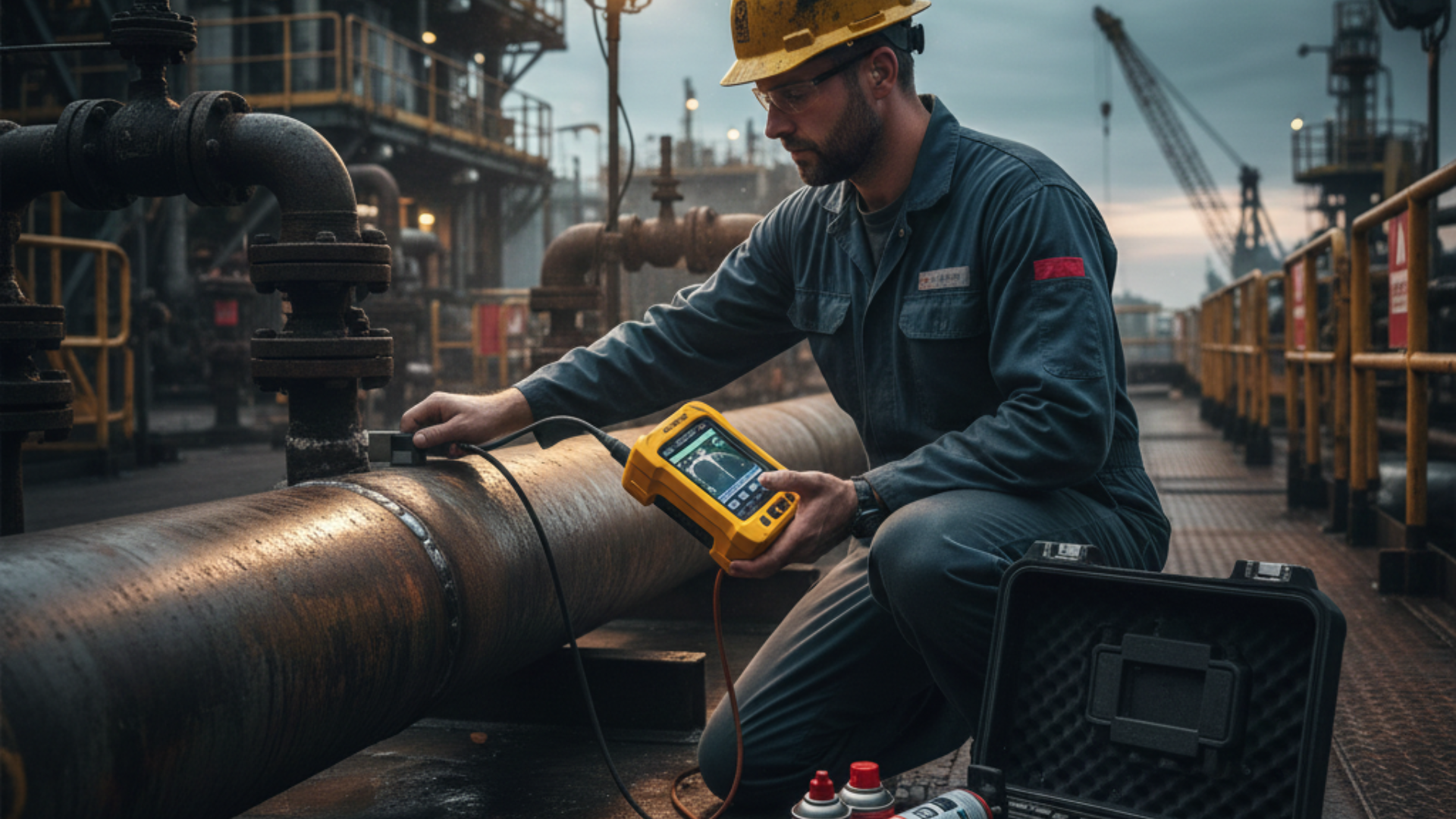

  • Handheld Flaw Detectors: Compact units with built-in screens and battery power, capable of measuring thickness or detecting internal flaws.

  • Portable Thickness Gauges: Small, dedicated devices for quick and accurate wall thickness measurements.

  • Portable Phased Array UT Units: More advanced, but still portable, offering complex scanning capabilities in the field.

• Magnetic Particle Inspection (MPI):

  • Portable MPI Yokes: Handheld electromagnets with articulated legs for inducing a magnetic field.

  • Aerosol MPI Kits: Consisting of magnetic particles, contrast paint, and cleaners in spray cans for easy application.

  • UV LED Torches: Battery-powered black lights for fluorescent MPI.

• Liquid Penetrant Inspection (LPI/PT):

  • Aerosol Dye Penetrant Kits: Consisting of penetrant, remover, and developer in spray cans. Ideal for quick, on-the-spot crack detection.

  • Portable UV LED Torches: For fluorescent penetrant inspection.

• Visual Testing (VT):

  • Borescopes/Videoscopes: Flexible or rigid optical instruments for inspecting internal cavities or hard-to-reach areas.

  • Inspection Cameras: For documenting findings.

Advantages

• On-Site Inspection: Eliminates the need to dismantle or transport large or fixed components.

• Reduced Downtime: Quick setup means minimal interruption to operations.

• Versatility: Can be deployed across various industries (oil & gas, aerospace, construction, manufacturing).

• Cost-Effective: Often a more economical solution for infrequent or geographically dispersed inspections compared to fixed lab setups.

Portable inspection systems are fundamental to modern NDT, allowing integrity assessments to be carried out wherever and whenever needed, directly contributing to operational safety and efficiency.
